All 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.

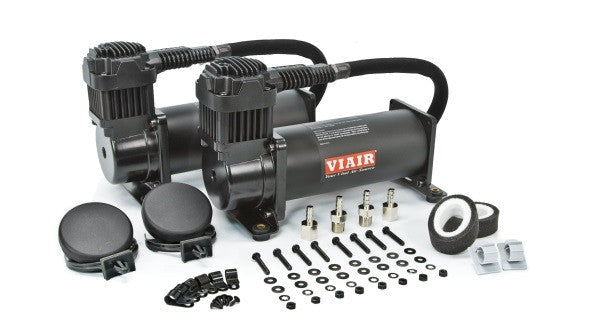

Included Parts;
- (2) 444C Black Compressors Patents Pending Intercooler Head
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- (6) Airline Clips
Specifications;
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 200 PSI
Max. Amp Draw: 38 Amps
Net Weight: 21.60 lbs.
Tech Links;
Dimensional Drawings
Viair recommended Wiring Diagram
Instruction Manual
| Fill Rates | |
| 5 Gallon Tank | Fill Rate |
| 0 to 200 PSI | 5 Min.30 Sec. |
| 165 to 200 PSI | 1 Min. 35 Sec. |
| Performance Data | ||
| PSI | CFM | A |
| 0 | 3.53 | 23 |
| 10 | 3.25 | 27 |
| 20 | 2.97 | 31 |
| 30 | 2.86 | 31 |
| 40 | 2.72 | 32 |
| 50 | 2.58 | 34 |
| 60 | 2.47 | 34 |
| 70 | 2.37 | 35 |
| 80 | 2.30 | 37 |
| 90 | 2.19 | 37 |
| 100 | 2.12 | 38 |
| 110 | 2.01 | 36 |
| 120 | 1.91 | 36 |
| 130 | 1.80 | 35 |
| 140 | 1.73 | 35 |
| 150 | 1.62 | 34 |
| 160 | 1.55 | 33 |
| 170 | 1.48 | 32 |
| 180 | 1.34 | 31 |
| 190 | 1.24 | 30 |
| 200 | 1.13 | 28 |
| *Supply Voltage 13.8 Volts | ||
