Hot Spot Fab RA1 Honda Odyssey Rear Air Bag Kit 96-98

  • Sale
  • Regular price $ 989.99
Shipping calculated at checkout.


Hot Spot Fab Rear Air Bag Kit

Honda Odyssey RA1

Years 1996, 1997, 1998

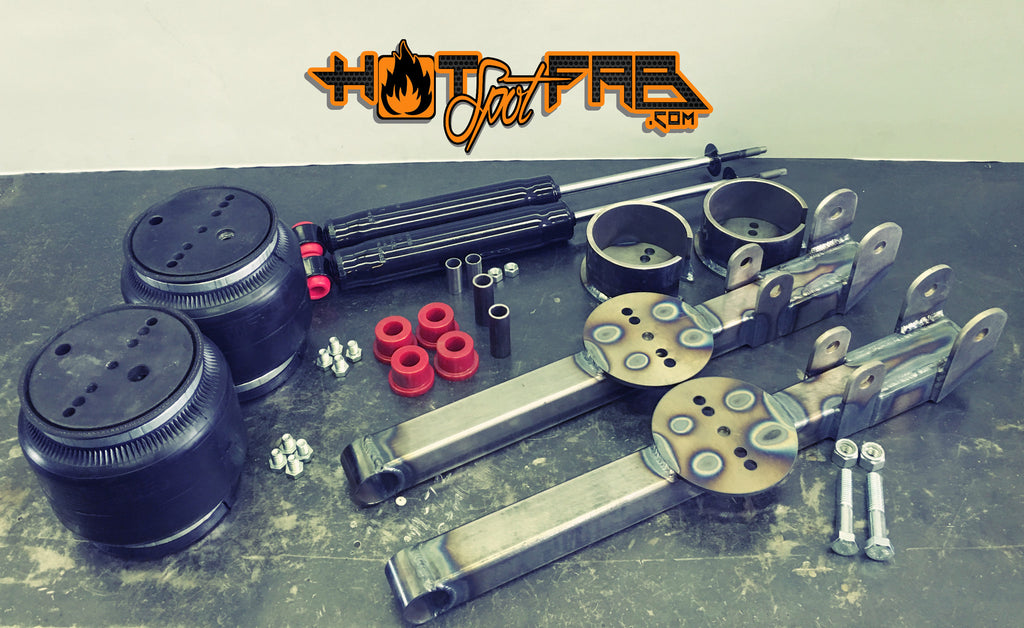

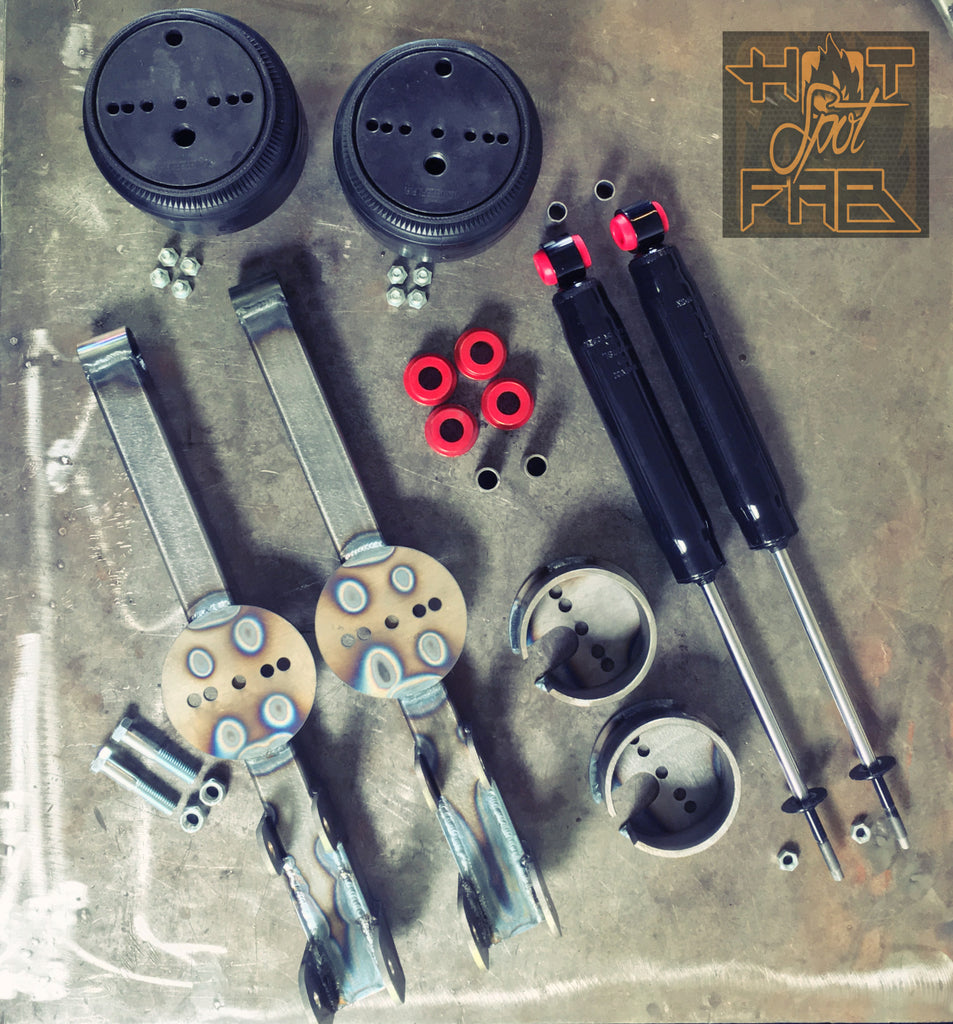

Kit Includes:

(2) Air House 2" 3/8 Port Air Bags, By Universal Air Suspension

(2) Hot Spot Fab Lower Control Arms With Bushings (made inhouse)

(2) Hot Spot Fab Upper airbag mounts (made inhouse)

(2) Progressive Shock Absorbers

 Also Includes Hardware Kit

MADE IN THE USA

TIG WELDED

It's finally here! The first control arm kit for the rear of your RA1 Honda Odyssey. Over 18 years of air suspension experience has been put into the design of this kit. With the replacement of the factory arms, we were able to create more room for the airbag. This allowed for good cycling geometry and clearance for the airbag that is not possible with the factory arm without loosing "drop." Features the ability to use the USA made Universal Airhouse 2 airbag. The lower shock mount is relocated to create space for the wheel to be cambered in without the caliper hitting the shock. The much more narrow shock also allows for more room on top for a wider wheel and tire combo. The shorter shock allows the back end to sit lower. It will now bottom out on the upper arm and swaybar mount. All quality components used! DOM tube surrounds Polyurethane bushings with the rest made in Cold Roll steel. Upper mounts are are a perfect fit in your OEM coil spring pocket and feature laser cut bag plates. TIG WELDED. No corners were cut in this kit!

PROCESSING TIME:  There is 2-3 week turnaround time once order has been processed and paid.
