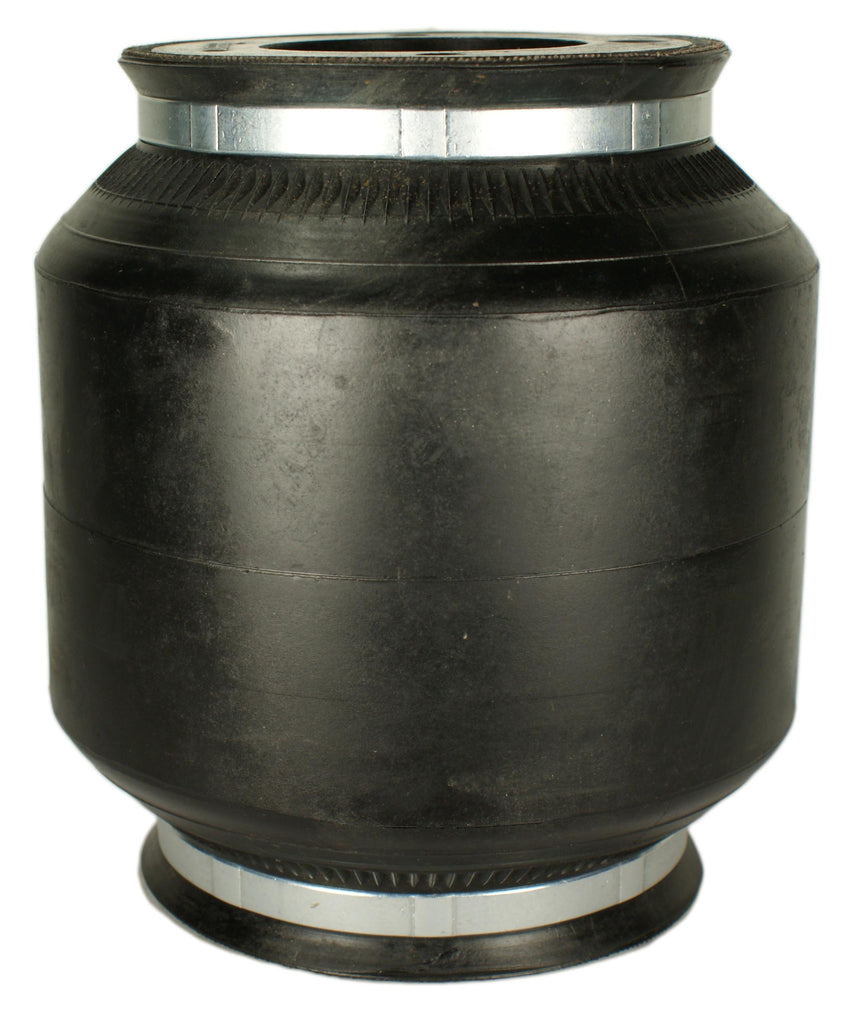

Single Convoluted Air Spring.
Designed for to slip over your Factory/Performance Struts. (Pressure tube must be less then 2.14 in Diameter)
4.0" Compressed
9.25" Extended
6.5" Diameter
Bags made from Synthetic rubber to be resistant against Oil and breakdown that will ruin Natural Rubber.
Available in 1/4 NPT Ports
MADE IN THE USA!
NOTE: The brackets required to install these bags are 2 Flat Plates (Upper and Lower), Bearing Kit (You also can use your factor bearing plate for this application).
This bag is designed for the Heavy Weight Vehicles Including:
07+ GM SUV
F-150
Silverado
Expedition
The larger diameter allows for the bag to pick up higher at the same pressure and same at lower pressure then the standard aero sport.
