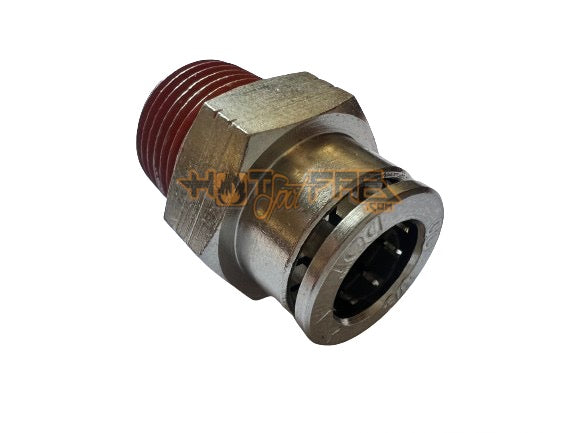

3/8" Hose to 3/8" NPT Straight Push-to-Connect.
All of our fittings are D.O.T. Approved to prevent Air Leaks
Specifications
D.O.T. FMVSS 571.106 Air Brake Performance Requirements; SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.
Materials of Construction
Body (straights), tube supports and grippers: Brass CA 360; Forged Elbows: Brass CA377; “O” Ring: NBR-269, alternate compounds on request.
Temperature Range
-40°F to 212°F (other ranges available upon request)
Threads
NPTF Standard.
Recommended Tubing
Polyethylene, Polyurethane 95A Durometer and Nylon AQ-DOT Series - J844 Air Brake Tubing
Working Pressure
The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
