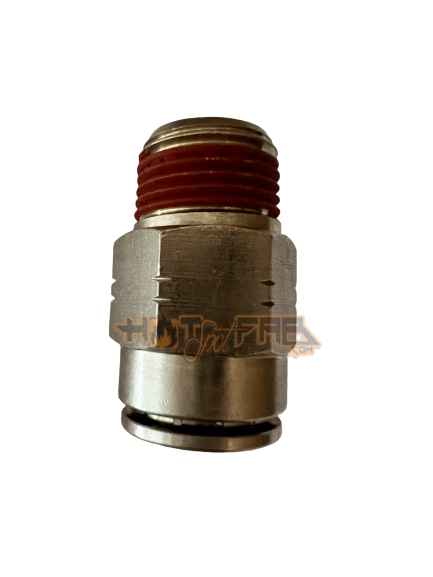

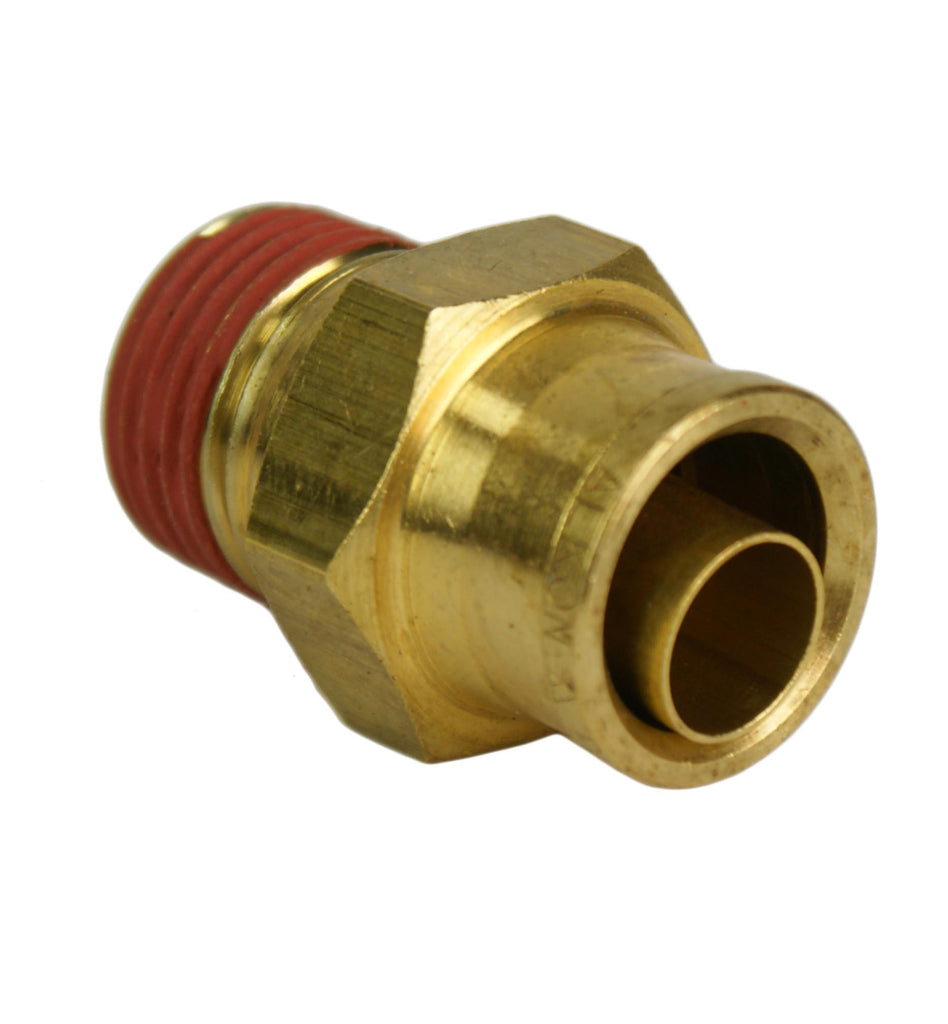

1/2" Hose to 3/8" NPT Straight Push-to-Connect.
All of our fittings are D.O.T. Approved to prevent Air Leaks
Specifications
D.O.T. FMVSS 571.106 Air Brake Performance Requirements; SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.
Materials of Construction
Body (straights), tube supports and grippers: Brass CA 360; Forged Elbows: Brass CA377; “O” Ring: NBR-269, alternate compounds on request.
Temperature Range
-40°F to 212°F (other ranges available upon request)
Threads
NPTF Standard.
Recommended Tubing
Polyethylene, Polyurethane 95A Durometer and Nylon AQ-DOT Series - J844 Air Brake Tubing
Working Pressure
The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
All of our fittings are D.O.T. Approved to prevent Air Leaks
Specifications
D.O.T. FMVSS 571.106 Air Brake Performance Requirements; SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.
Materials of Construction
Body (straights), tube supports and grippers: Brass CA 360; Forged Elbows: Brass CA377; “O” Ring: NBR-269, alternate compounds on request.
Temperature Range
-40°F to 212°F (other ranges available upon request)
Threads
NPTF Standard.
Recommended Tubing
Polyethylene, Polyurethane 95A Durometer and Nylon AQ-DOT Series - J844 Air Brake Tubing
Working Pressure
The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
